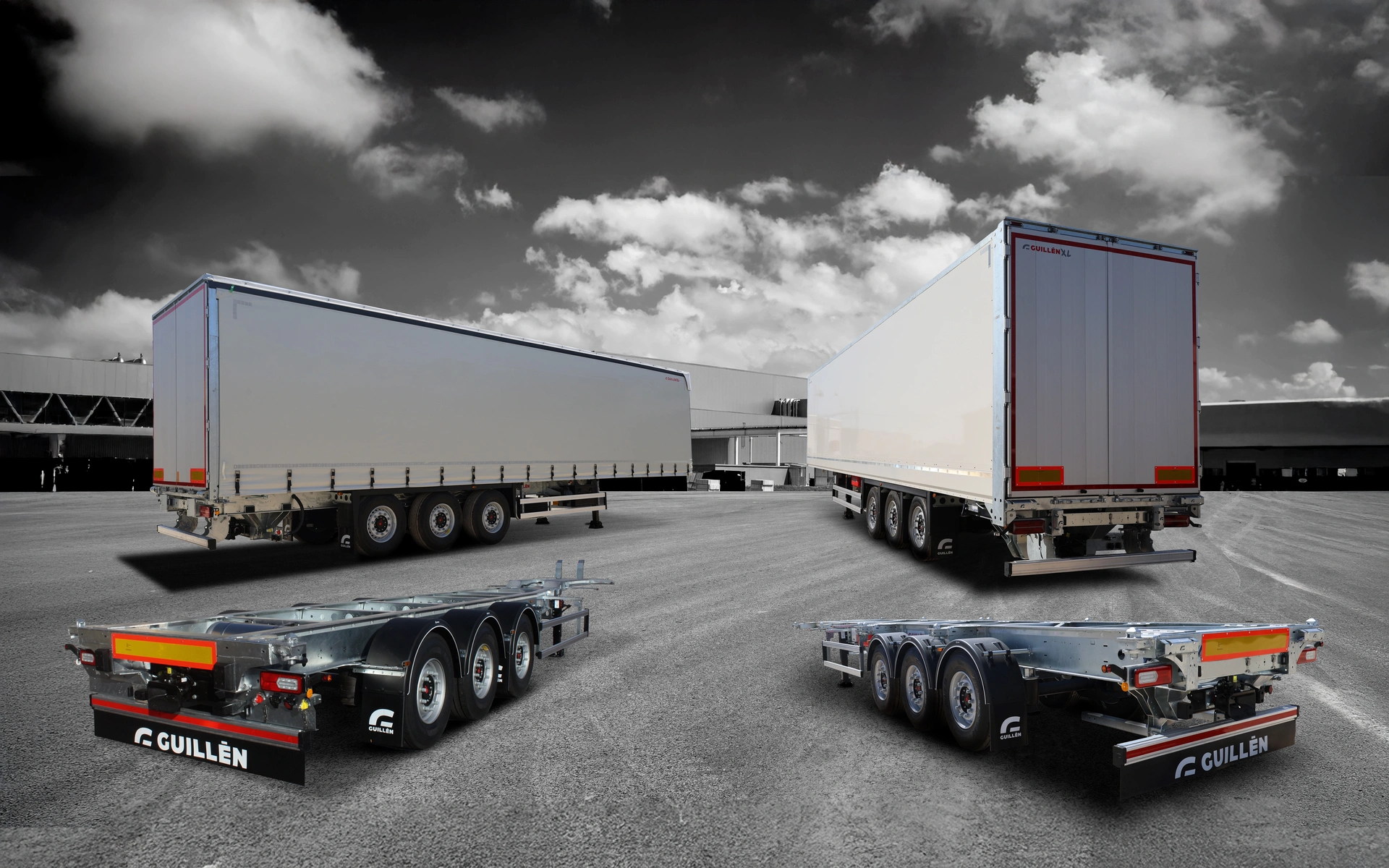

Models DT

Towing solutions that combine reinforcement, durability, safety and reliability to adapt to any type of transport and the most adverse conditions, such as those found in Scandinavian countries.

RENT BUY

Elegir logotipo

FROM

6.300 Kg

CHASSIS

Galvanized

STEEL

High-Strength

TECHNICAL DETAILS

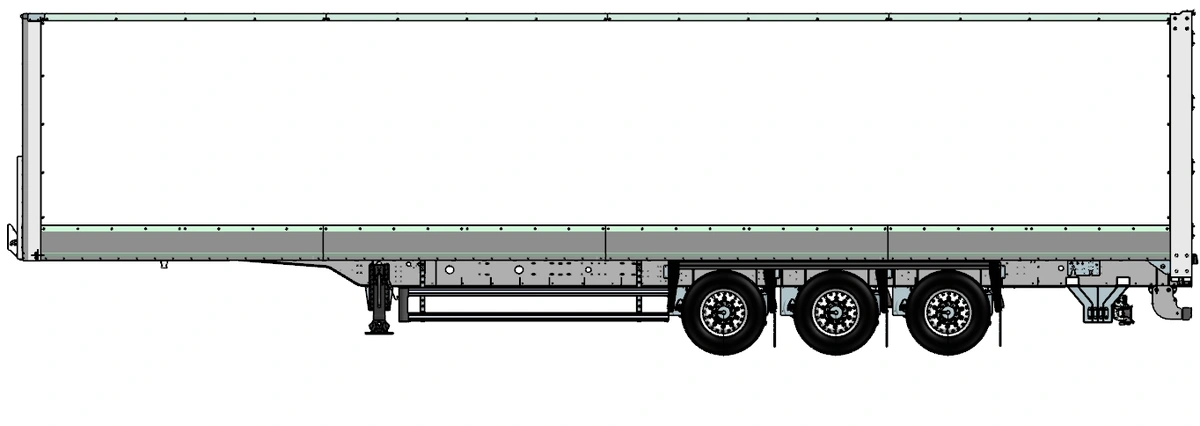

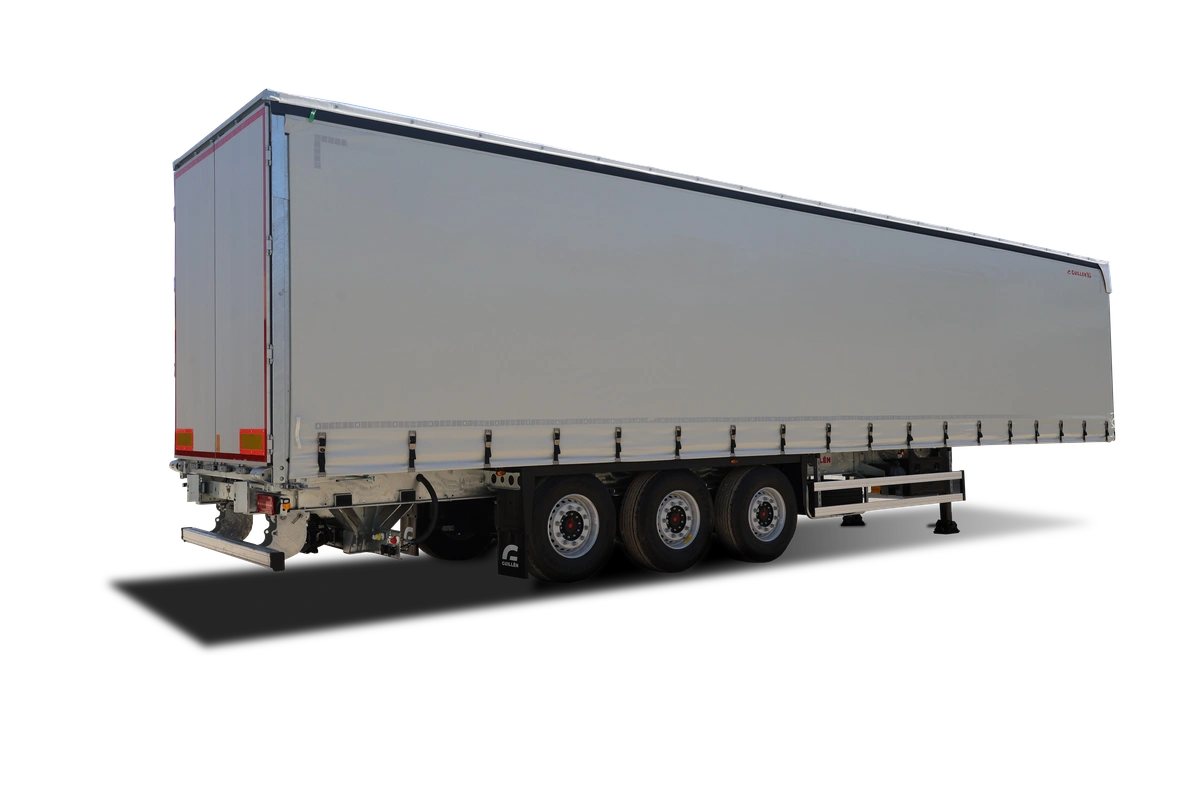

Max. width approx. 2550 mm – Max. length approx. Interior 13,620 mm – Vehicle height approx. 4,000 mm

Total weight approx. (±3%) from 6,300 kg – Max. king-pin weight (permissible/technical) 14,000/14,000 kg -- Max. axle group weight (permissible/technical) 24,000/27,000 kg – Max. total mass (permissible/technical) 38,000/41,000 kg Payload (permissible/technical) up to 31,700/34,700 kg

Min. 1,050 mm……… Max. 1,250 mm

FROM

7.200 Kg

CHASSIS

Galvanized

STEEL

High-Strength

TECHNICAL DETAILS

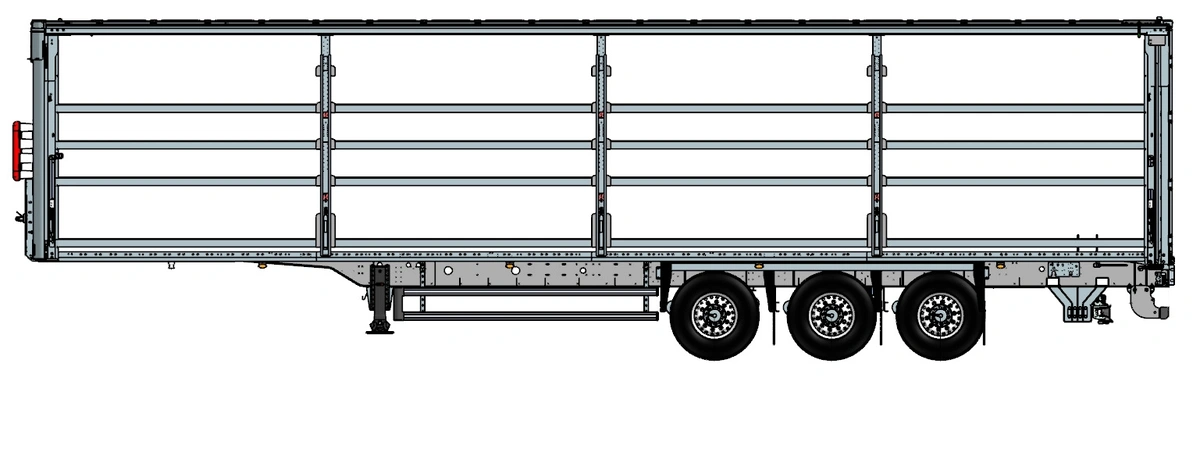

Max. width approx. 2550 mm – Max. length approx. Interior 13,620 mm – Vehicle height approx. 4,000 mm

Total weight approx. (±3%) from 7,200 kg – Max. king-pin weight (permissible/technical) 14,000/14,000 kg -- Max. axle group weight (permissible/technical) 24,000/27,000 kg – Max. total mass (permissible/technical) 38,000/41,000 kg Payload (permissible/technical) up to 30,800/33,800 kg

Min. 1,050 mm……… Max. 1,250 mm

FROM

4.250 Kg

CHASSIS

Galvanized

STEEL

High-Strength

TEHCNICAL DETAILS

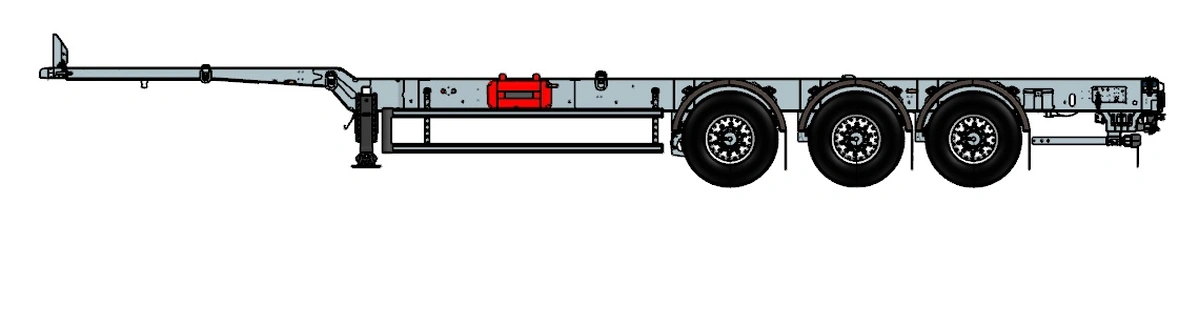

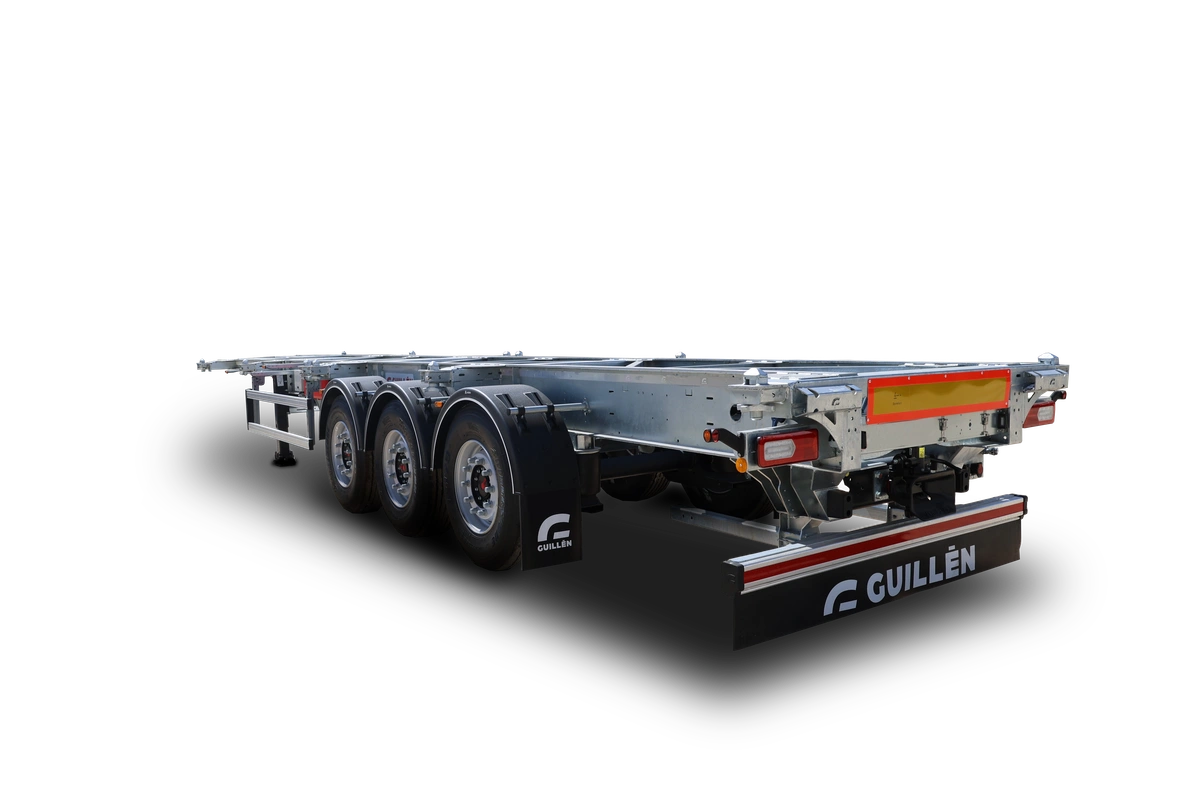

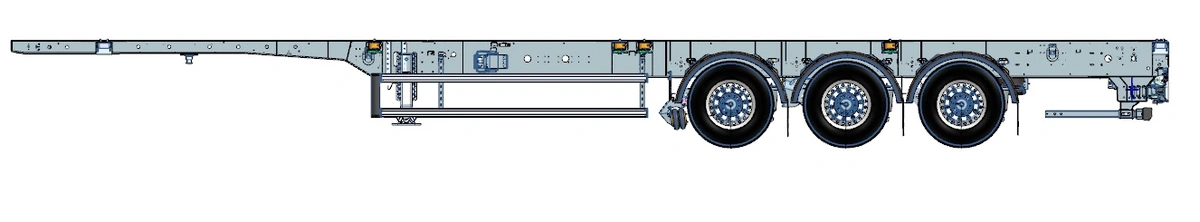

Max. width approx. 2,495 mm – Max. length = 45' ISO container

Total weight approx. (±3%) from 4,250 kg – Max. king-pin weight (permissible/technical) 14,000/14,000 kg -- Max. axle group weight (permissible/technical) 24,000/27,000 kg – Max. total mass (permissible/technical) 38,000/41,000 kg Payload (permissible/technical) up to 33,750/36,750 kg

Min. 1,100 mm……… Max. 1,200 mm

FROM

4.200 Kg

CHASSIS

Galvanized

STEEL

High-Strength

TECHNICAL DETAILS

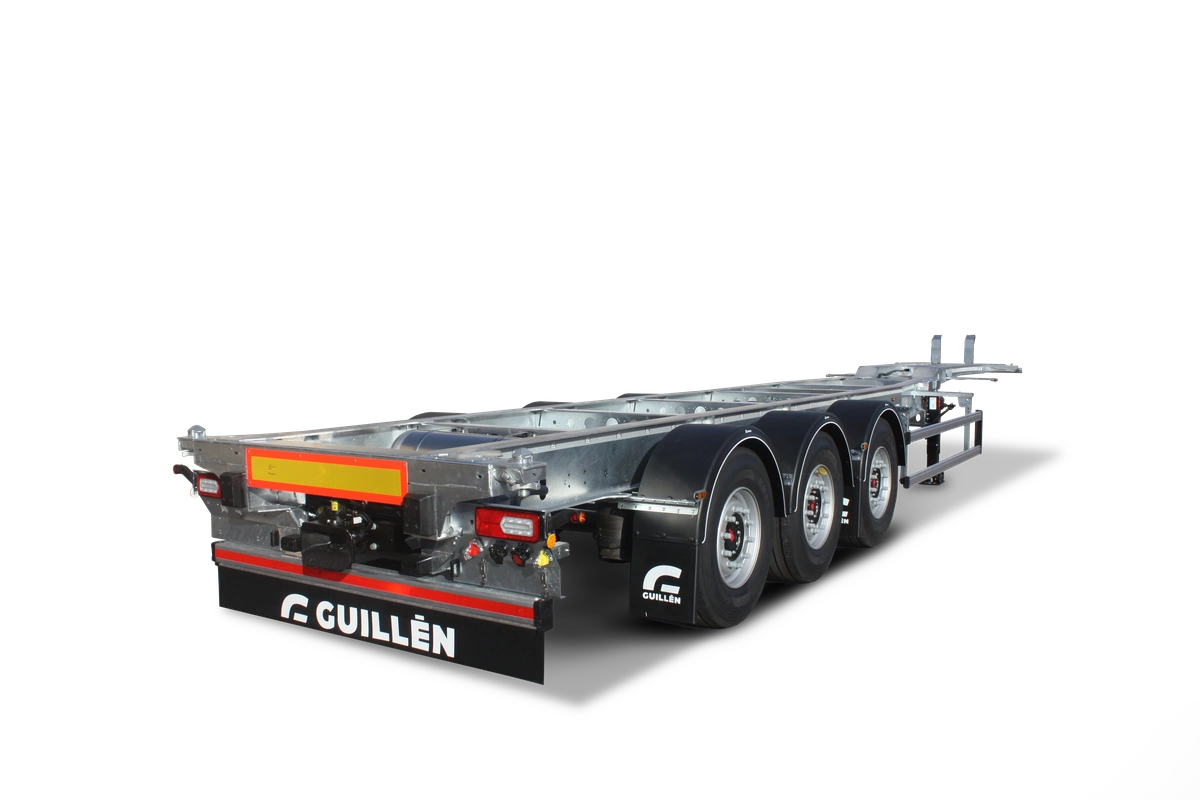

Max. width approx. 2,495 mm – Max. length = 45' ISO container

Total weight approx. (±3%) from 4,200 kg – Max. king-pin weight (permissible/technical) 14,000/14,000 kg -- Max. axle group weight (permissible/technical) 24,000/27,000 kg – Max. total mass (permissible/technical) 38,000/41,000 kg Payload (permissible/technical) up to 34,400/37,400 kg

Min. 1,000 mm……… Max. 1,200 mm

OUR GUIDELINES

CHASSIS

Hot-dip galvanized chassis in molten zinc crucible when the structure is fully formed for increased corrosion resistance and durability in demanding conditions.
Chassis specially developed for its work as a tugboat. Reinforced beams, trusses in the chassis, etc.

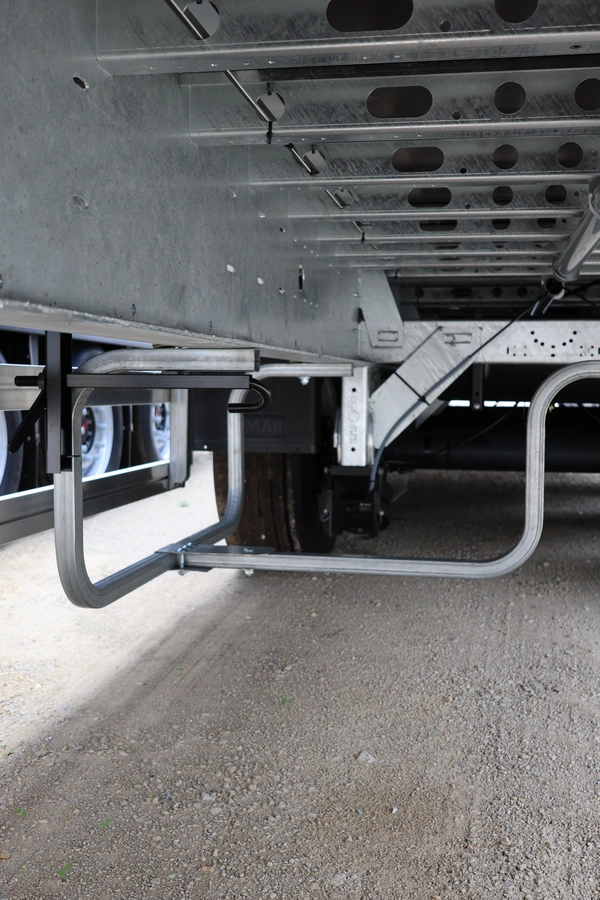

Heavy Duty model axle bracing to ensure durability of the chassis and axle supports by the action of towing by Dolly trailer.
Bumper set with aluminum bar and brackets bolted to the chassis that provide lightness as well as resistance and a minimum cost of replacement / replacement in case of accident.
Variants with kin-ping capacity up to 18 tons. and disaggregated self-steering rear axle.

CARROCERÍA

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
