PC IDEAL

The Ideal PC is an extendable container carrier that combines structural strength, adaptability and reliability, designed to meet the demands of intermodal transport.

RENT BUY

Elegir logotipo

PC IDEAL

FROM

4.400 Kg

CHASSIS

Galvanized

STEEL

High-Strength

TECHNICAL SHEET

TECHNICAL DETAILS

Max. width 2,495 mm – Max. length 13,620 mm – Vehicle height 1,300 mm

Approx. total weight (±3%) 4,450 kg – Max. kingpin weight (permissible/technical) 14,000/14,000 kg -- Max. axle group weight (permissible/technical) 24,000/27,000 kg – Max. total weight (permissible/technical) 38,000/41,000 kg Payload (permissible/technical) 33,550/36,550 kg

Min. 1050 mm……… Max. 1250 mm

OUR GUIDELINES

CHASSIS

Skeletal single-tube container chassis structure made entirely of high-tensile steel equipped with Ø52mm twist locks.
Vehicle with capacity to transport containers in combinations of 1 x 45' raised (front container anchorage at the bottom, 40' twist locks), 1 x 40' (High Cube or flat), 2 x 20', 1 x 30' and 1 x 20' at the rear.

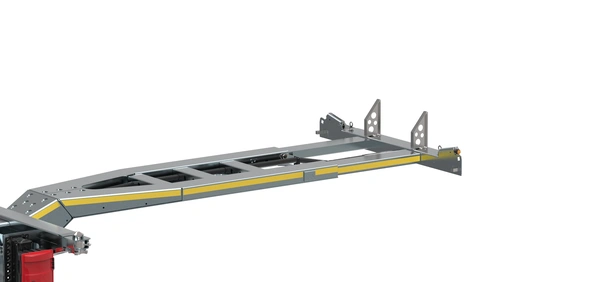

Front crossbar with folding twist locks suitable for front or bottom container lashing.
Central extension with container load position selector and rear extension by means of a rack and pinion system operated by a manual rotary handle.
Hot-dip galvanized chassis structure with fully formed structure.
Manufactured from high yield strength steel.
Welded by robots with high precision.
Extendable rear bumper (usable for transporting 45" containers) made of aluminum, which makes it lighter, and supports bolted to the chassis for easy replacement or repair.
