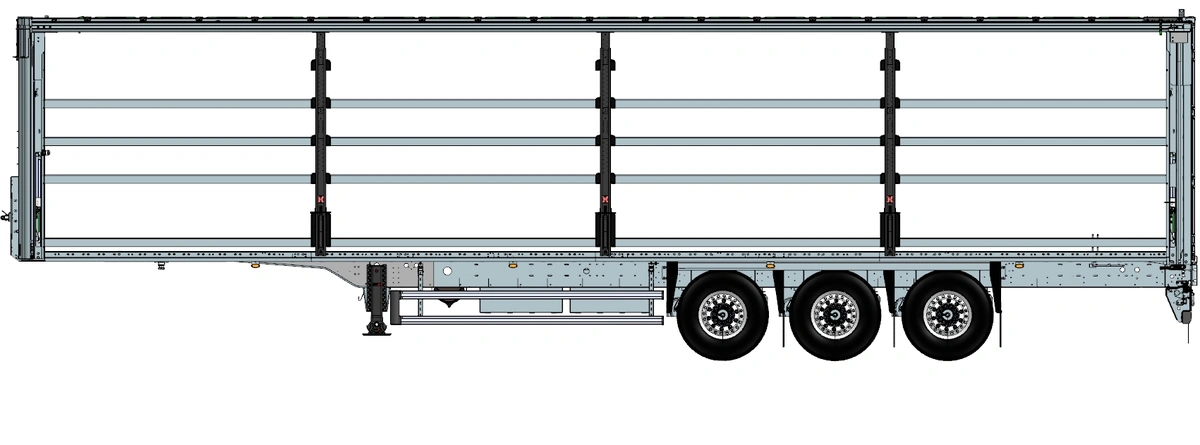

TECHNICAL DETAILS
Max. width 2,550 mm – Max. internal length 13,620 mm – Vehicle height 4,000 mm – Interior clear height (rear) 2,800 mm
Approx. total weight (±3%) 5,703 kg – Max. king-pin load (permissible/technical) 14,000/14,000 kg – Max. axle group load (permissible/technical) 24,000/27,000 kg – Max. total weight (permissible/technical) 38,000/41,000 kg – Payload (permissible/technical) 32,297/35,297 kg
Min. 1,050 mm – Max. 1,250 mm
OUR GUIDELINES
CHASSIS
- Hot-dip galvanized.
- Manufactured from high-strength steel.
- Robot-welded with high precision.
- Lightweight Z-type crossmembers, mounted approximately 390 mm apart for increased stability and strength. Rear crossmembers (1,600 mm) mounted at 265 mm to reinforce the forklift entry/exit area.
- Fixed aluminum rear bumper for reduced weight, with bolted supports to the chassis for easy replacement or repair.
TRAILER BODY
- Certified to DIN EN12642 XL and German standards VDI 2700 and DAIMLER 9.5 for a 27,000 kg net load.
- Front aluminum pillars with rounded corners for better aerodynamics, featuring horizontal slats clipped and riveted for extra strength.
- Internal front reinforcement panel for added safety.

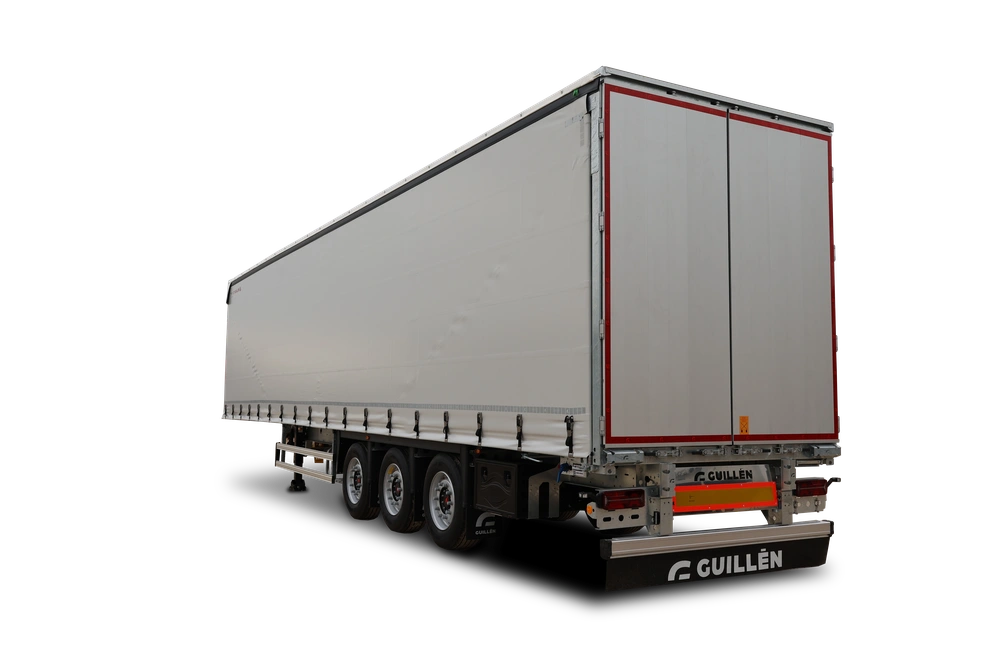

- Aluminum rear doors with clipped and riveted profiles and double-action hinges.
