Aero Van

The aero van is designed to move your goods quickly and easily thanks to its system of rollers embedded in the base of the platform.

RENT BUY

Elegir logotipo

AERO VAN

FROM

8.400 Kg

CHASSIS

Galvanized

STEEL

Strength Steel

TECHNICAL SHEET

TECHNICAL DETAILS

Max. width 2550 mm – Max. inner width 2,480mm – Max. inner length 13,620mm –

Total weight approx. (±3%) from 8,400kg – Max. king-pin mass (permissible/technical) 14,000/14,000kg -- Max. axle unit mass (permissible/technical) 24,000/27,000kg – Max. total mass (permissible/technical) 38,000/41,000 Kg

Min. 1050 mm......... Max. 1250 mm

OUR GUIDELINES

CHASSIS

Hot-dip galvanized.
Manufacture of high elastic limit steel.
Welded through robots with great precision.
Lightweight Z-type crossbars, mounted at an approximate 390mm separation between centers, which gives it greater stability and resistance. Rear crossbars (1,600 mm) mounted at 265 mm to reinforce the entry-exit area of the trucks to the vehicle.
Fixed rear aluminum bumper which gives it greater lightness and brackets bolted to the chassis to facilitate its change or repair.

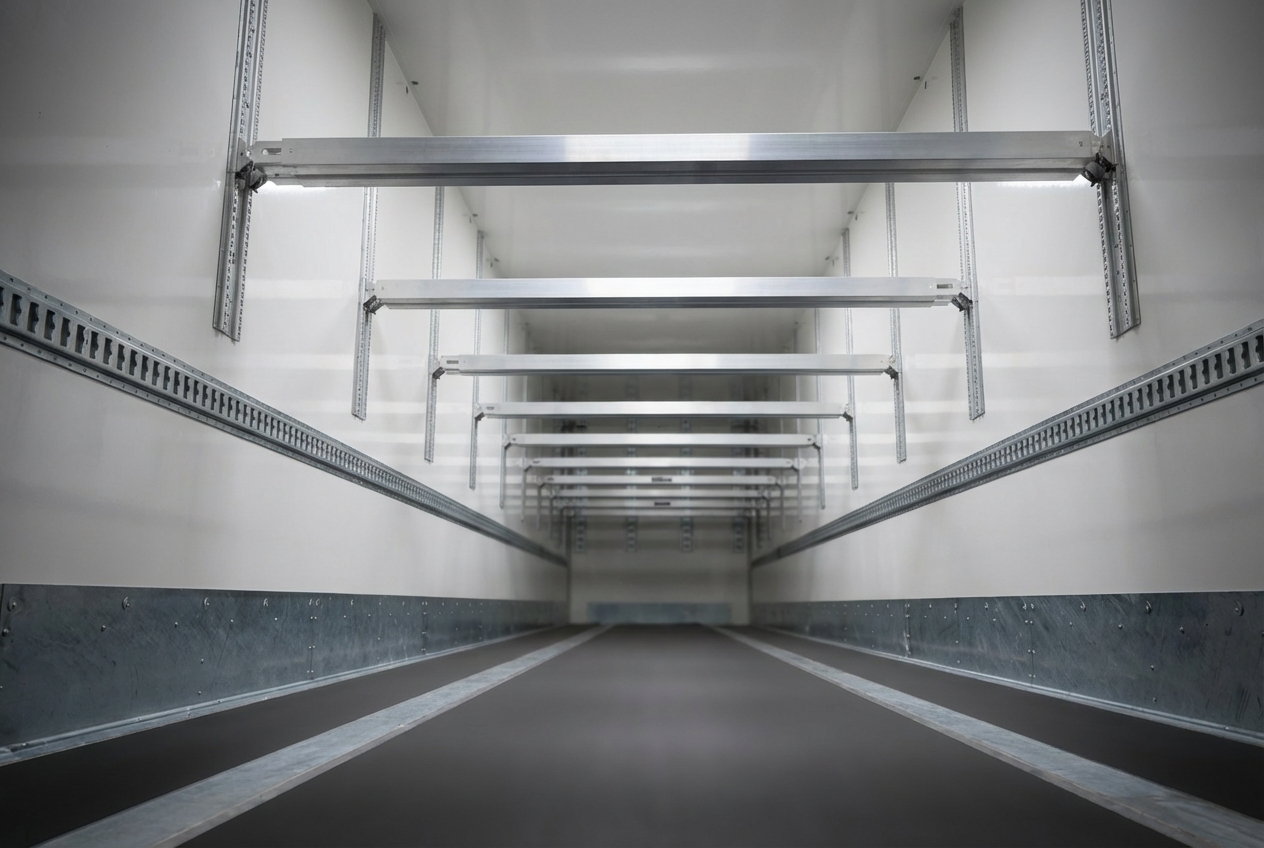

The AERO system includes 4 rails equipped with rollers for easy loading/unloading. With a lifting capacity of 550 kg per module per metre, thanks to our Pneumatic Rollertrack (PRT) technology that uses air to safely raise and lower the rollers, we can offer the ideal solution to meet your needs, regardless of the load.

WEIGHTS

Approved according to EN12642XL for a net load of 27,000kg.
Front, roof and sides made up of 20mm thick PlyWood panels.
Profiles assembled by means of modular steel profiles around the entire contour that in turn perform the functions of a 300mm high lower skirting board, glued, riveted and sealed
Front reinforced with modular steel frame and 3mm lower steel skirting board and external vertical reinforcements.
Floor in 100% birch Finnish board 27mm thick
